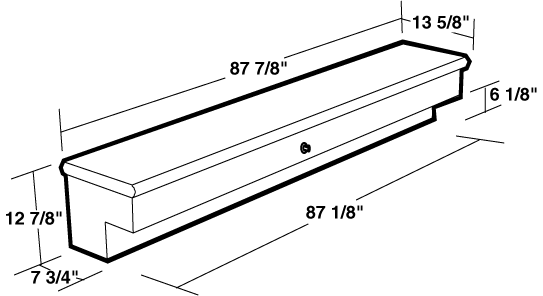

Model: 165-3
Lo-Side Box - Steel - White |
|
Dimensions: H: 12 7/8"
W: 13 5/8" L: 87 7/8" |
|
Weight (lbs.): 115 |
Cubic Feet: 6 |
 |
|
Fits: Full size
pickups with 8' beds |
|
Includes: Two keys and
a removable, high impact plastic tray are provided |
|
Includes: Mounting
legs and hardware |
|
|
|
• ONE-TOUCH latch
mechanism and trademarked RED PUSHBUTTON features a powder coated
aluminum, automotive style latching system. |
|
• Low profile box that mounts
on the side rail of your pick up truck. Can be used separately or in
combination with Cross or Saddle Boxes. |
|
• J-hook mounting requires no
drilling of holes in the rails. |
|
|
|

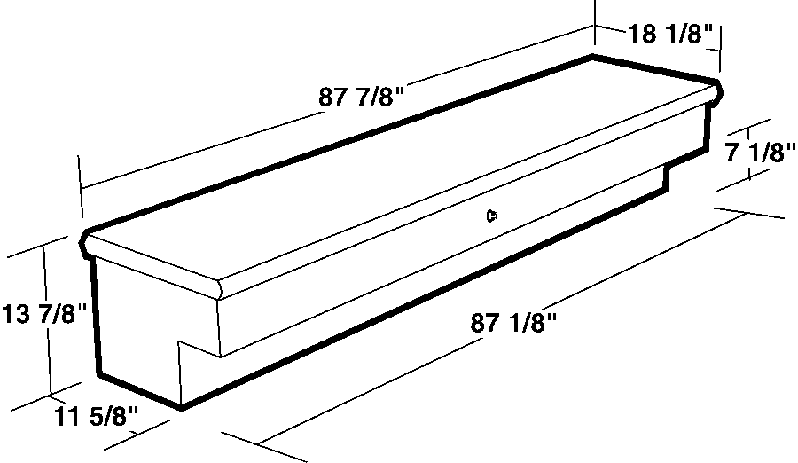

Model: 166-3
Super-Lo Box - Steel - White |
|
Dimensions: H: 13 7/8"
W: 18 1/8" L: 87 7/8" |
|
Weight (lbs.): 139 |
Cubic Feet: 9 |
|
|
|
Fits: Full size
pickups with 8' beds |
|
Includes: Two keys and
a removable, high impact plastic tray are provided |
|
Includes: Mounting
legs and hardware |
|
|
|
• ONE-TOUCH latch
mechanism and trademarked RED PUSHBUTTON features a powder coated
aluminu, automotive style latching system. |
|
• Low profile box mounts over
the side rails of your pickup and has 40% more storage space than
Lo-Side Boxes. |
|
• 10" to 12" of available
space under the box for 4' wide materials. |
|
|
|

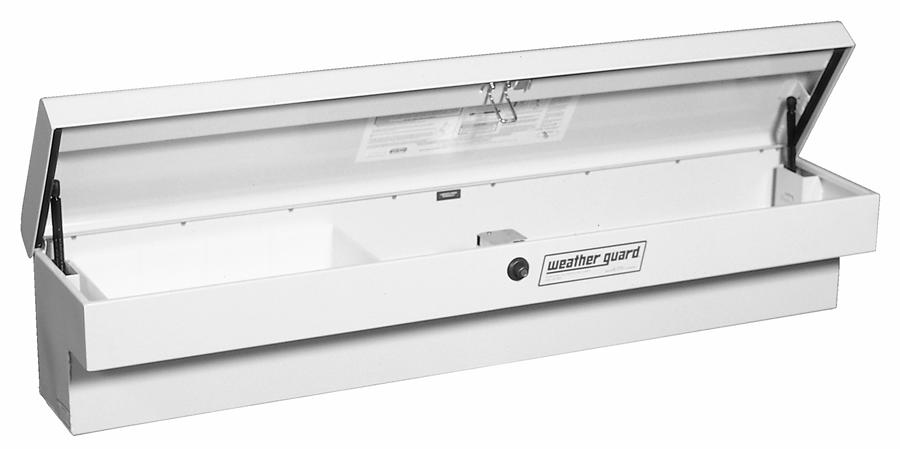

Model: 175-3
Lo-Side Box - Steel - White |
|
Dimensions: H: 12 7/8"
W: 13 5/8" L: 60 3/8" |
|
Weight (lbs.): 88 |
Cubic Feet: 4 |
|
|
|
Use: Separately or in
combination with Cross or Saddle boxes. |
|
Includes: Two keys and
a removable, high impact plastic tray are provided |
|
Includes: Mounting
legs and hardware |
|
|
|
• ONE-TOUCH latch
mechanism and trademarked RED PUSHBUTTON features a powder coated
aluminum, automotive style latching system. |
|
• Low profile box that mounts
on the side rail of your pick up truck. Can be used separately or in
combination with Cross or Saddle Boxes. |
|
• J-hook mounting requires no
drilling of holes in the rails. |
|
 |
|

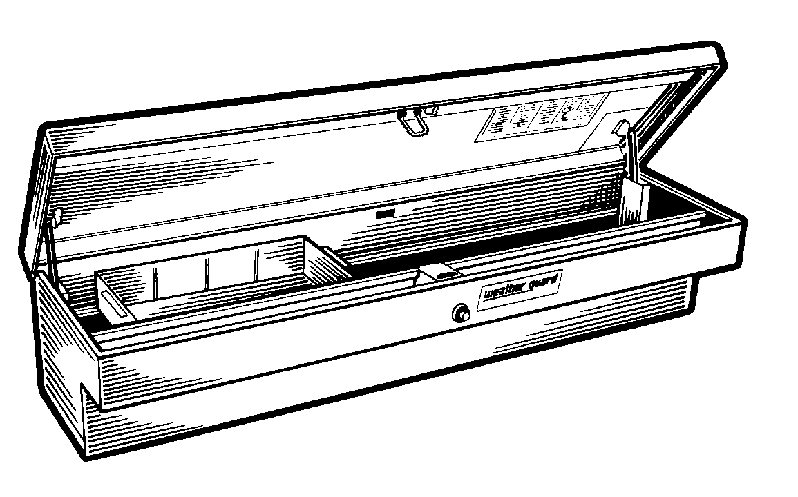

Model: 176-3
Super-Lo Side Box - Steel - White |
|
Dimensions: H: 13 7/8"
W: 18 1/8" L: 60 3/8" |
|
Weight (lbs.): 105 |
Cubic Feet: 7 |
|
|
|
Use: Separately or in
combination with Cross or Saddle boxes. |
|
Includes: Two keys and
a removable, high impact plastic tray are provided |
|
Includes: Mounting
legs and hardware |
|
|
|
• ONE-TOUCH latch
mechanism and trademarked RED PUSHBUTTON features a powder coated
aluminu, automotive style latching system. |
|
• Low profile box mounts over
the side rails of your pickup and has 40% more storage space than
Lo-Side Boxes. |
|
• 10" to 12" of available
space under the box for 4' wide materials. |
|
|
|

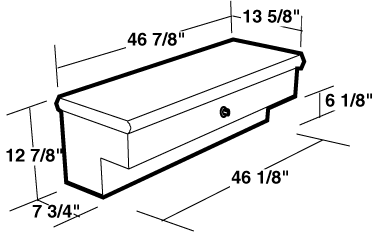

Model: 185-3
Lo-Side Box - Steel - White |
|
Dimensions: H: 12 7/8"
W: 13 5/8" L: 46 7/8" |
|
Weight (lbs.): 70 |
Cubic Feet: 3 |
|
|
|
Use: Separately or in
combination with Cross or Saddle boxes. |
|
Includes: Two keys and
a removable, high impact plastic tray are provided |
|
Includes: Mounting
legs and hardware |
|
|
|
• ONE-TOUCH latch
mechanism and trademarked RED PUSHBUTTON features a powder coated
aluminu, automotive style latching system. |
|
• Low profile box that mounts
on the side rail of your pick up truck. Can be used separately or in
combination with Cross or Saddle Boxes. |
|
• J-hook mounting requires no
drilling of holes in the rails. |
|
|
|

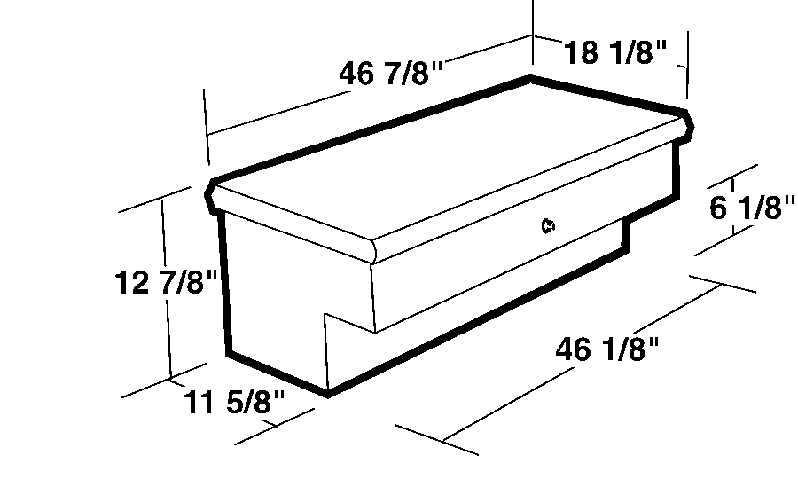

Model: 186-3
Super-Lo Side Box - Steel - White |
|
Dimensions: H: 13 7/8"
W: 18 1/8" L: 46 7/8" |
|
Weight (lbs.): 83 |
Cubic Feet: 5 |
|
|
|
Use: Separately or in
combination with Cross or Saddle boxes. |
|
Includes: Two keys and
a removable, high impact plastic tray are provided |
|
Includes: Mounting
legs and hardware |
|
|
|
• ONE-TOUCH latch
mechanism and trademarked RED PUSHBUTTON features a powder coated
aluminu, automotive style latching system. |
|
• Low profile box mounts over
the side rails of your pickup and has 40% more storage space than
Lo-Side Boxes. |
|
• 10" to 12" of available
space under the box for 4' wide materials. |
|
|
